1170 PCMCIA Slot Assembly

•  Battery Pack
•  Diskette Drive
•  Hard Disk Drive
•  Keyboard Unit
•  Status Indicator
•  Standby Battery and Front IR
•  Backup Battery
•  Logic Assembly
•  Shield Assembly
•  DC/DC Card
•  DSP Card
•  Interposer Card
•  Processor Card
•  System Board Assembly

•  When handling the PCMCIA slot assembly,  be careful not to disassemble any part of it.  The slot assembly is not solidly fixed when it is removed from the  system board or the FRU.

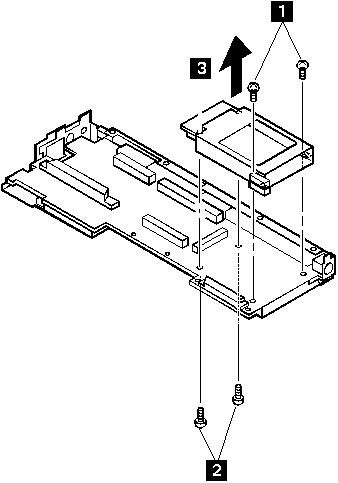

   In step 3, gently pull up the bottom of  the center area of the connector board edge with your fingers.
•  The screw stand at each corner of  the PCMCIA slot is easy to remove.  Make sure that the screw stand is correctly positioned  when the slot is replaced.  Do not replace the slot without the screw stand.

Step	Location (Quantity)	Length
1	PCMCIA slot, upper (2)	4 mm
2	PCMCIA slot, lower (2)	14 mm

NOTE: Make sure you use the correct screw. Screw Size Chart
