1120 Shield Assembly
1120 Shield Assembly
The microphone cable can pick up electrical noise if the cable path is incorrect.
Do the following to place the cable in its correct position.

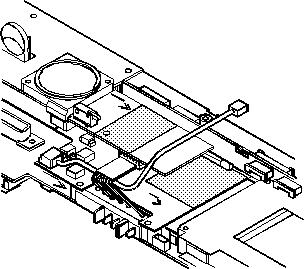

- Position the cable as shown.
- Install the shield assembly
- Move the end of cable to the right

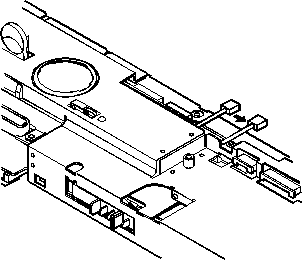

The following figure shows the final path of the cable. Make sure the
cable is not positioned in any shaded areas.

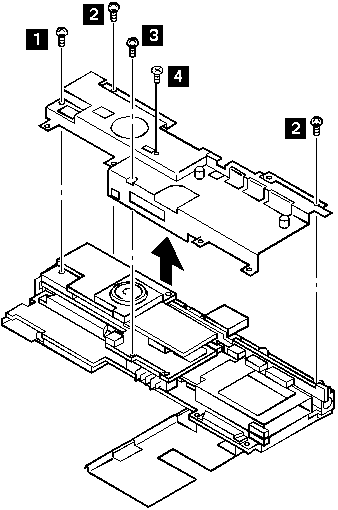

Use the following table to reference when replacing parts.
| Step |
Location (Quantity) |
Length |
| 1 |
Shield cover (1) |
4 mm |
| 2 |
Shield cover (2) |
6 mm |
| 3 |
Shield cover (1) |
14 mm |
| 4 |
Shield cover (1) |
Flat head |
NOTE: Make sure you use the correct screw. Screw Size Chart
