1115 Logic Assembly
2115 Logic Assembly

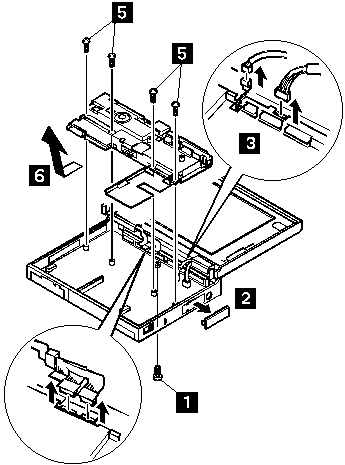

The screw 1 is located at the rear bottom side.
NOTE:
When replacing

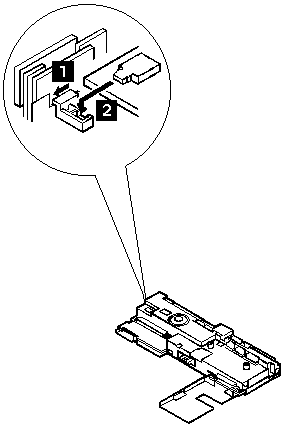

the logic assembly, align the power-key slide
hub with the power-switch actuator by moving the power-key
in the direction of the arrow.
See the large circle in the figure.
Before tightening
any screws, check that the power-switch operates correctly.
| Step |
Location (Quantity) |
Length |
| 1 |
Logic assembly (1) |
4 mm |
| 4 |
Logic assembly (4) |
8 mm |
NOTE: Make sure you use the correct screw. Screw Size Chart
