IBM-AUSTRIA - PC-HW-Support 30 Aug 1999 |
1030 Diskette Drive
1030 Diskette Drive

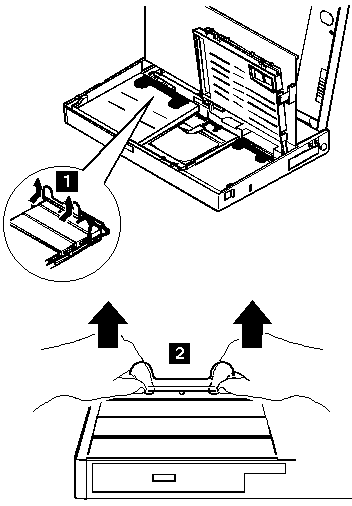

NOTE: Remove the Diskette drive exactly as shown in the figure.
Do not apply any extra force to the top surface of the diskette drive.
Make sure the media is removed, or the media and the drive may be damaged.
When replacing the CD-ROM/diskette drive, check that
the standby battery is seated correctly to prevent
damage to the drive.
After replacing the diskette drive, latch the removal strap into the
correct position.
