IBM-AUSTRIA - PC-HW-Support    30 Aug 1999

Fan ASM

•  Battery ASM
•  Hard Disk Drive
•  Combo Bay
•  Keyboard
•  LED Board
•  Upper Heatsink
•  CPU Board
•  LCD Panel ASM
•  Upper Cover ASM
•  IMM Lower Heatsink ASM

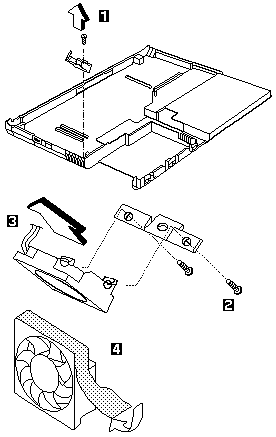

1.  Remove the screw securing the fan ASM. Lift the fan  ASM up to remove.
2.  Remove the two screws securing the fan ASM.
3.  Remove the mylar from the fan ASM.

Step	Size (Quantity)	Head & Color	Torque
1	M2 x 4L (1)	Flat head, silver	1.6 kgf-cm
2	M2.5 x 3.5L (2)	Flat head, black	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.
