LCD Panel ASM



LCD Panel ASM

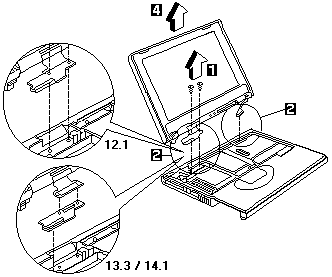

To remove the LCD Panel ASM:
  1.  Remove the two screws securing the LCD FPC cable.
  2.  Remove the LCD FPC cable.
  3.  Disconnect the LCD FPC cable from the lower case (12.1").
     Disconnect the LCD FPC cable and LVDS board (13.3" and 14.1").

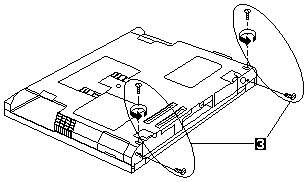

  4.  Turn the notebook over, then remove four screws  securing the LCD Panel ASM as shown.
  5.  Pull out the LCD Panel ASM.





Step Size (Quantity) Head & Color Torque
2 M2.5 x 10L (1)
M2 x 4L (1)		 Pan head, silver
Pan head, black		 12.1" L 1.6kgf-cm
12.1" R 1.6kgf-cm
2 M2.5 x 18L (1)
M2 x 10L (1)		 Pan head, silver
Pan head, silver		 13.3" and 14.1"
L:1.6 kgf-cm
R:1.6 kgf-cm
3 M2.5 x 6L (4) Flat head, black 3.5 kgf-cm


Note: Make sure you use the correct screw for replacement.
