Upper Cover ASM

•  Battery ASM
•  Hard Disk Drive
•  Combo Bay
•  Keyboard
•  LED Board
•  Upper Heatsink
•  LCD Panel ASM

1.  Remove the screws from the upper cover ASM.



   Step	Size (Quantity)	Head & Color	Torque
   1	M2 x 4L (3)	Flat head, silver	1.6 kgf-cm
   2	M2 x 18L (3)	Pan head, black	1.6 kgf-cm


   Note: Make sure you use the correct screw for replacement.

2.  Turn the notebook over. Then remove the 4 screws  from the base cover.



   Step	Size (Quantity)	Head & Color	Torque
   3	M2.5 x 6L (1)	Flat head, black	2.0 kgf-cm
   4	M2.5 x 18L (3)	Pan head, black	2.0 kgf-cm


   Note: Make sure you use the correct screw for replacement.

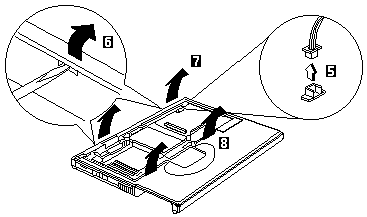

3.  Use a flat-bladed screwdriver to remove the latch.
4.  Disconnect the cable from the main unit. Now you  can remove the upper cover ASM from the base cover ASM.
