IMM Lower Heatsink ASM
IMM Lower Heatsink ASM

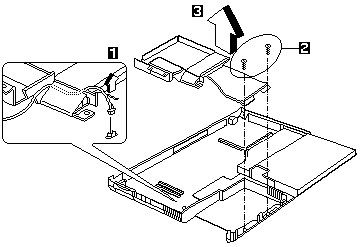

To remove the IMM lower heatsink ASM:
- Remove the 2 screws securing the IMM lower
heatsink ASM. Lift the IMM lower heatsink ASM up to
remove.
- Disconnect the power cable from the connector.
| Step |
Size (Quantity) |
Head & Color |
Torque |
| 2 |
M2.5 x 6L (2) |
Flat head, black |
1.6 kgf-cm |
Note: Make sure you use the correct screw for replacement.
