1085 TFT - LCD Panel

1085 TFT 10.4-inch - LCD Panel (A)

TFT LCD Panel (A) FRU 46H8093, 69H7947, 82H8039

NOTE: You can replace the entire 10.4-inch TFT LCD unit (A) with the entire LCD unit (B), or vice versa. But you cannot replace parts of (A) with parts of (B), or vice versa.

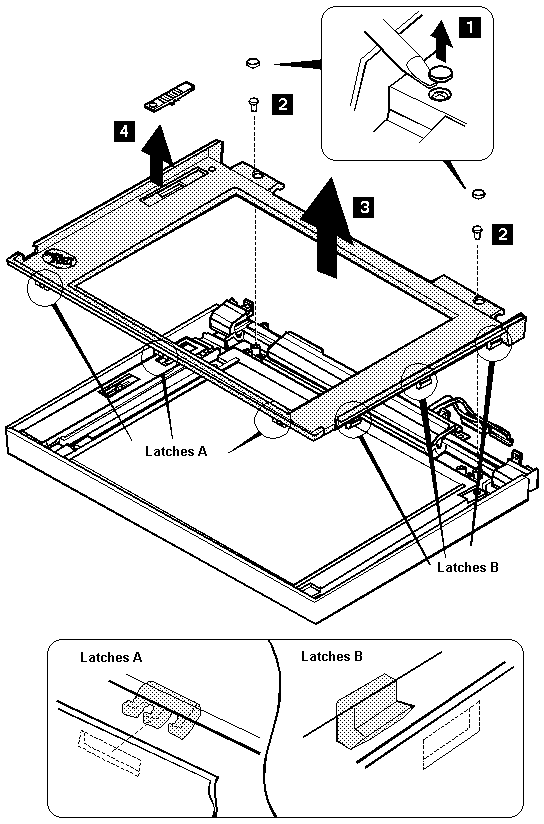

Step Screw Location (Quantity) Length 2 LCD Front Cover (2) M3 x 6 mm

Step	Screw Location (Quantity)	Length
2	LCD Front Cover (2)	M3 x 6 mm

NOTE: Make sure you use the correct screws when replacing.

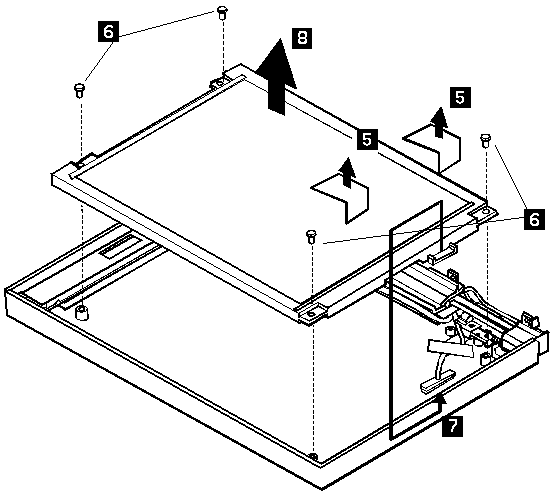

Step Screw Location (Quantity) Length 6 LCD Panel (4) M3 x 6 mm

Step	Screw Location (Quantity)	Length
6	LCD Panel (4)	M3 x 6 mm

NOTE: Make sure you use the correct screws when replacing.

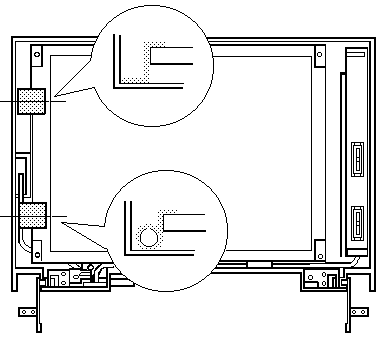

When replacing the LCD panel, replace the copper tape as shown below.

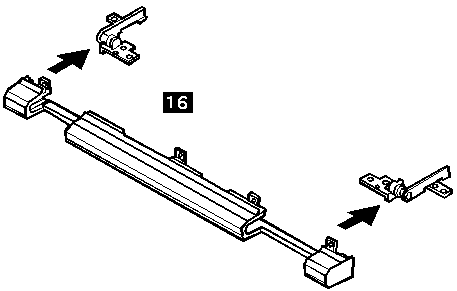

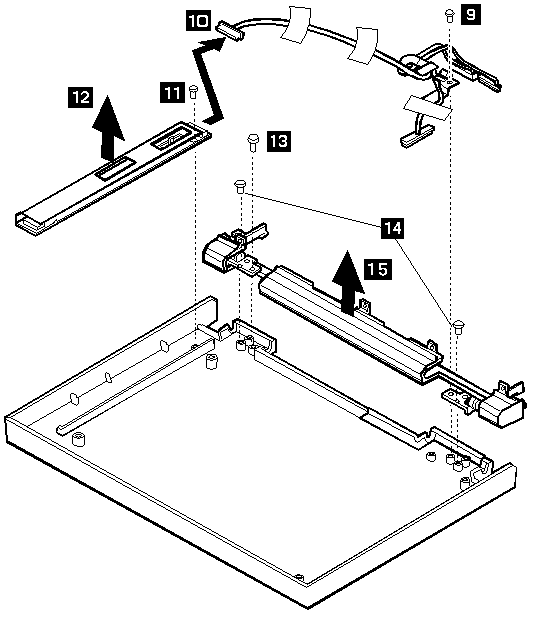

Step Screw Location (Quantity) Length 9 LCD Cable (1) M3 x 6 mm 11 Inverter Card (1) ST2.9 x 4.5 mm 13 Right Hinge (1) M3 x 6 mm 14 Hinge (2) M2 x 4 mm

Step	Screw Location (Quantity)	Length
9	LCD Cable (1)	M3 x 6 mm
11	Inverter Card (1)	ST2.9 x 4.5 mm
13	Right Hinge (1)	M3 x 6 mm
14	Hinge (2)	M2 x 4 mm

NOTE: Make sure you use the correct screws when replacing.

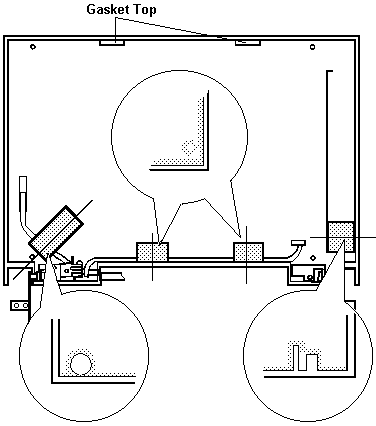

When replacing the LCD cable, replace the copper tape and gasket top as shown below.
