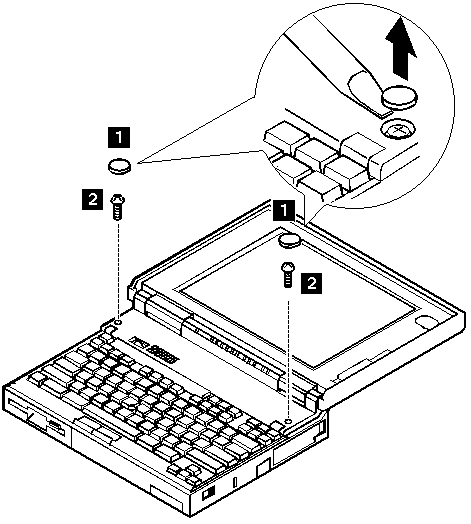

Step | Screw Location (Quantity) | Length |
---|---|---|
2 | Top Cover (2) | M2 x 5 mm |
NOTE: Make sure you use the correct screws when replacing.

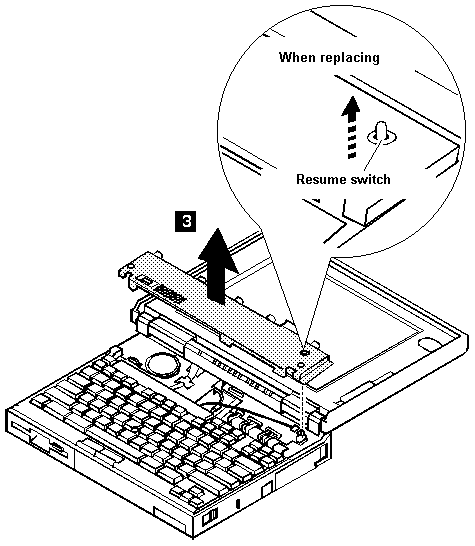

When replacing the top cover, be careful not to damage the
resume switch. Ensure that the resume switch extends
through the hole, as shown in the figure.
