1025 Insulator Sheet (2625 365X, XD)
1025 Insulator Sheet

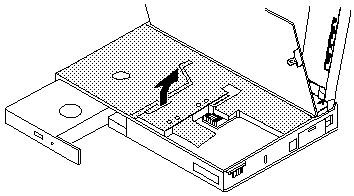

To access items under the keyboard other than the battery pack,
first raise the black insulator sheet as shown in the figures.
To access the hard disk drive and DIMM slots,
remove the three screws and raise the middle section of the
insulator sheet, as shown in the figures.
| Step |
Screw Location (Quantity) |
Length |
| 1 |
Insulator Sheet (2) |
M3 x 3 mm |
| 2 |
HDD Bracket (1) |
M2 x 5 mm |
NOTE: Make sure you use the correct screws when replacing.
