1040 Diskette Drive / CD-ROM Drive (2625 365X, XD)



1040 Diskette Drive / CD-ROM Drive

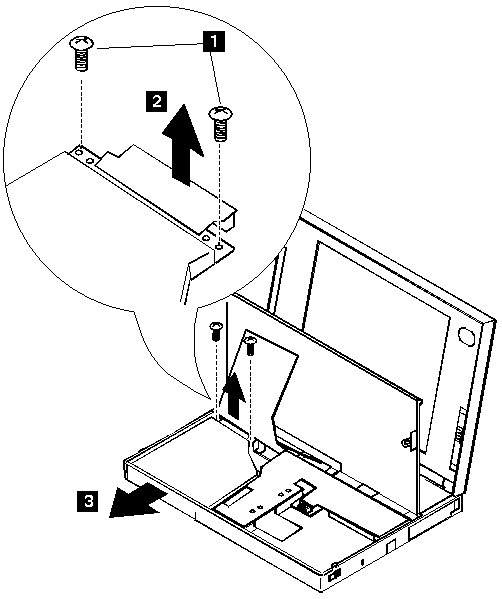

Diskette Drive (Model 365X)

NOTE: Release the latch at the left side of the diskette drive, as shown in the figure at 3, and remove the diskette drive.


Step Screw Location (Quantity) Length
1 Diskette Drive (2) M2.5 x 5mm


NOTE: Make sure you use the correct screws when replacing.

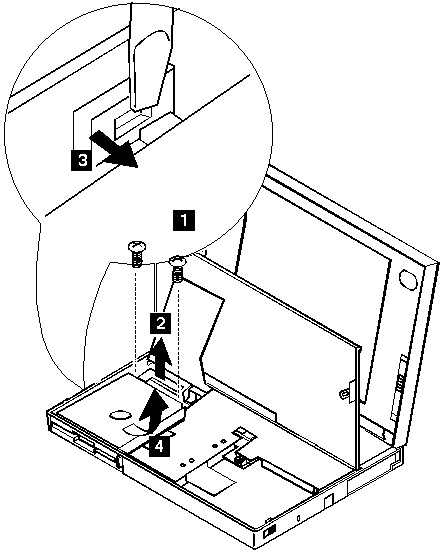

CD-ROM Drive (Model 365XD)
  Remove the CD-ROM drive exactly as shown in the figure. Do not apply any extra force to the CD-ROM drive when removing it.


Step Screw Location (Quantity) Length
1 CD-ROM Drive (2) M2.5 x 8mm


NOTE: Make sure you use the correct screws when replacing.
