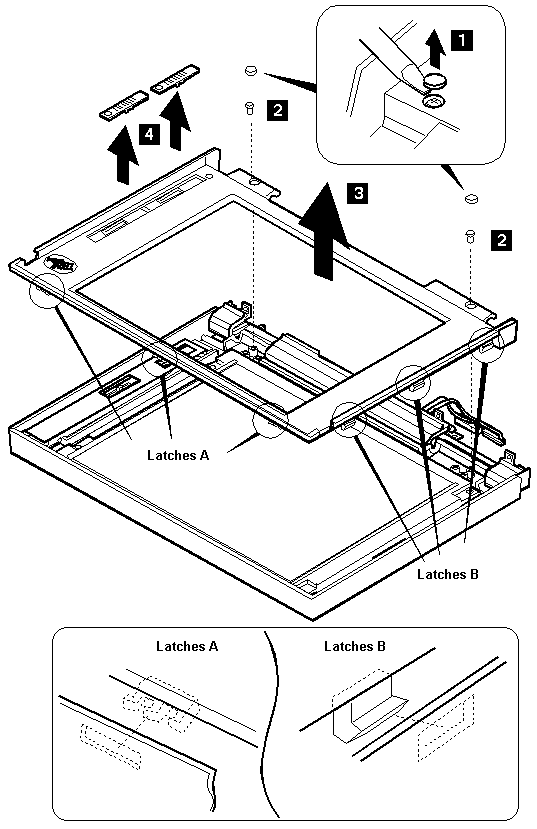

| Step | Screw Location (Quantity) | Length |
|---|---|---|
| 2 | LCD Front Cover (2) | M3 x 6 mm |
NOTE: Make sure you use the correct screws when replacing.

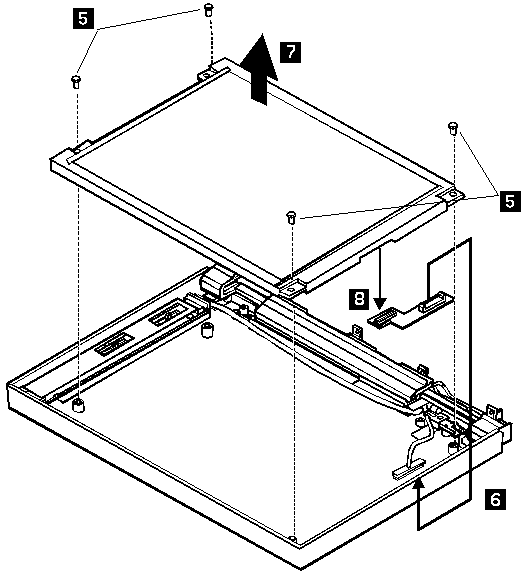

| Step | Screw Location (Quantity) | Length |
|---|---|---|
| 5 | LCD Panel (4) | M3 x 6 mm |
NOTE: Make sure you use the correct screws when replacing.
| Step | Screw Location (Quantity) | Length |
|---|---|---|
| 9 | LCD Cable (1) | M3 x 6 mm |
| 11 | Inverter Card (1) | ST2.9 x 4.5 mm (10.4-inch LCD) M3 x 6 mm (11.3-inch LCD) |
| 13 | Right Hinge (1) | M3 x 6 mm |
| 14 | Hinge (2) | M2 x 4 mm |
NOTE: Make sure you use the correct screws when replacing.
