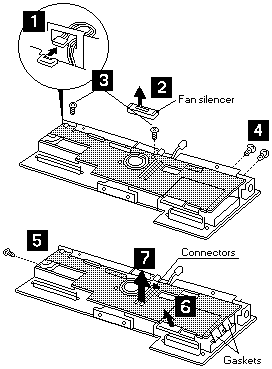

| Step | Size (quantity) | Memo (torque) |
|---|---|---|
| 3 | M2.5x4 mm (2) | Nylon coating (4kgcm) |
| 4 | M2x4 mm (2) | Nylon coating (2.5kgcm) |
| 5 | M2.6x5 mm (1) | (3 kgcm) |
NOTE: Do not reuse (see Screw Kit - FRU P/N) a screw you removed. Use a new screw and
tighten the screw to the torque specification shown.
