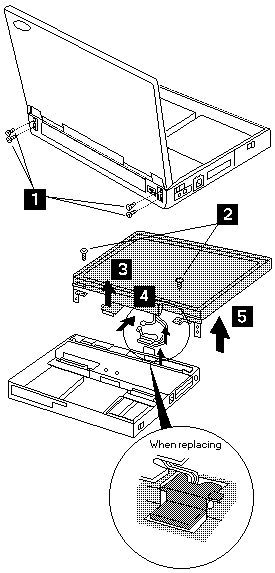

| Step | Size (quantity) | Memo (torque) |
|---|---|---|
| 1 | M2.5x4 mm (4) | Nylon coating (4.5kgcm) |
| 2 | M2.5x6 mm (2) | Flathead (4kgcm) |
NOTE: Do not reuse (see Screw Kit - FRU P/N) a screw you removed. Use a new screw and
tighten the screw to the torque specification shown.
