1110 System Board Assembly, DIMM Adapter (765D-9546 765L-9547)



1100 System Board Assembly, DIMM Adapter


NOTE: In step 1, lift the switch cover halfway up, (1), then pull the switch lever out to remove (2).



NOTE:
  1.  Step 4 is 765D-unique. For 765L, skip this step.
  2.  In step 5, push the levers gently to avoid flexing them.




Step Size (quantity) Memo (torque)
6 M2.5x6 mm (3) Nylon coating (4kgcm)
7 M2.5x8 mm (4) Nylon coating (4kgcm)
9 M2.5x4 mm (2) Nylon coating (4kgcm)


NOTE: Do not reuse (see Screw Kit - FRU P/N) a screw you removed. Use a new screw and tighten the screw to the torque specification shown.

12 Move the IR unit in its location and make it free to disconnect the DIMM adapter card connector easily.

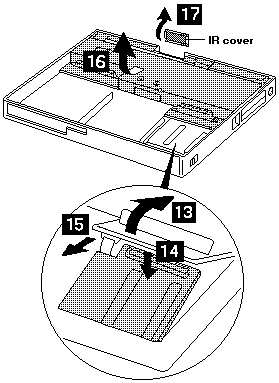

NOTE: Raise the system board assembly a bit 13 to disconnect the DIMM adapter card in step 14, the remove the DIMM adapter. Be careful not to damage the IR flexible cable under the DIMM adapter card. Then remove the IR flexible cable in step 15.



When replacing: Make sure that the connector of the DIMM adapter card is connected firmly. Loose or wrong connection cause a memory error.
