1020 Diskette Drive or CD-ROM Drive (765D-9546 765L-9547)
1020 Diskette Drive or CD-ROM Drive

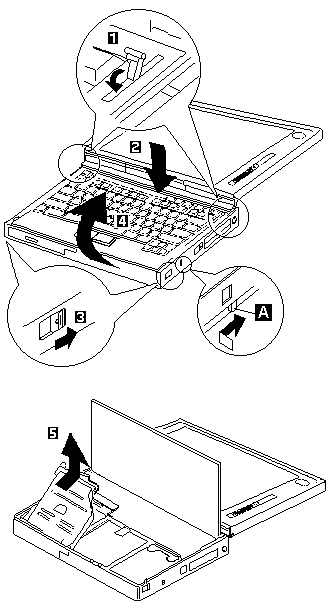

Diskette Drive (Model 365L)
NOTE:
If the security latch A is at the left position, push and slide
it to the right position (unlock).
CD-ROM Drive (Model 765D)
Remove the CD-ROM drive exactly as shown in the figure.
Do not apply any extra force to the CD-ROM drive
when removing it.
If the security latch A is at the left position, push and slide
it to the right position (unlock).
