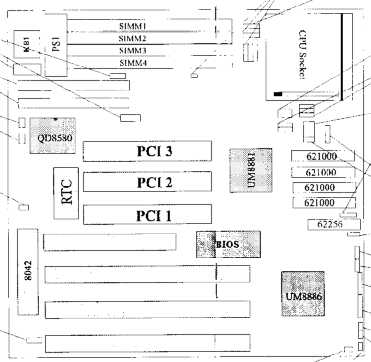

MP4-P4U885G ver:2 Motherboard - also known as PCI/ISA UD486GRN , P4U885GRN Ver 2.1 - Bios ID string ???????????? - 4-72 pin SIMM slots (2-128meg FPM DRAM) - 3-32bit PCI Bus slots - 3-16bit ISA slots - 1-8bit XT slot - 128k/256k/512k CACHE support in 4-32pin sockets + 1 TAG RAM socket - Award Auto-Detect Flash Bios with Energy Mgmt. - Supports LBA Mode Control & Large Disk DOS Compatibility. - Green PC Connectors - RTC chip - real time clock with built in cmos battery - UMC um8886f / um8881f chipset - Supports 3.3, 5volt CPU's with multipliers 2x/3x - 237pin ZIF CPU socket 3 which supports these processors: INTEL 80486SX/SX2,80486DX/DX2/DX4,P24T,P24D SL80486SX/SX2/DX/DX2 CYRIX CX486S(M6),CX486DX/DX2(M7) AMD AM486SX/AM486DX/DX2/DX4 UMC GREEN CPU U5S-SUPER - Supports speeds of 25/33/40/50/66/80/100 MHz. - 32bit Bus master for 2 IDE interfaces supporting 4 IDE devices. - Manufactured by: QDI |
|
