LCD Panel ASM 14.1"



LCD Panel ASM 14.1"

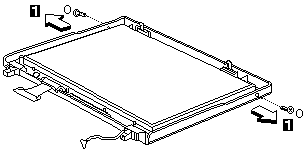

Remove the screw covers and screws.




Step Size (Quantity) Head & Color Torque
  M2 x 4L (2) Flat head, silver 1.6 kgf-cm


Note: Make sure you use the correct screw for replacement.
