Cable Asm and Cable Asm LED-R (TP 240 - 2609)
Cable Asm and Cable Asm LED-R

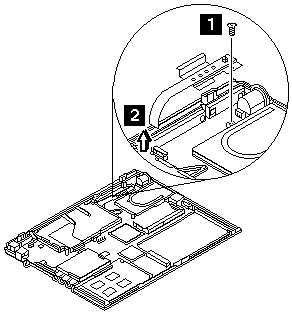

To remove the hinge LED cable:
- Disconnect the LED cable, then lift it as shown. (The cable is fixed with double-sided tape.)
To remove the cable Asm LED-R:
To remove the cable Asm LED-R:
- Remove the screw.
- Disconnect the LED board, then lift it as shown.
| Step |
Size (Quantity) |
Head & Color |
Torque |
| 1 |
M2.0 x 7 (1) |
Flat head, silver |
2.0 kgf-cm |
Note: Make sure you use the correct screw for replacement.
