Battery Asm (TP 240 - 2609)



Battery Asm

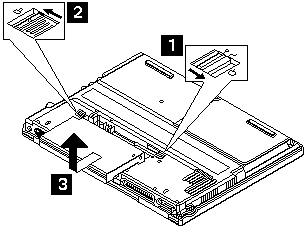

To remove the battery Asm:
  1.  Slide the release lock as shown.

  2.  Slide the release latch as shown.
  3.  Remove the battery Asm.


Reverse the steps described above when installing a new battery pack.
