Select Button Asm (TP 240 - 2609)

•  Battery Asm
•  Hard Disk Drive
•  Keyboard
•  LCD Unit Asm
•  Upper Cover Asm

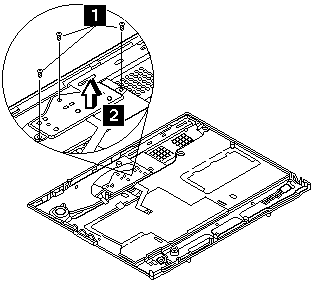

1.  Remove the three screws as shown.
2.  Remove the select button Asm from the top cover



Step	Size (Quantity)	Head & Color	Torque
1	M2.5 x 2.5 (3)	Flat head, silver	2.0 kgf-cm

Note: Make sure you use the correct screw for replacement.
