1170 CPU Card and Heat Sink (TP-770 - 9548/49)

•  Battery Pack
•  UltraBay II Device or 2nd Battery Pack (if installed)
•  Keyboard Assembly
•  Center Cover and Hinge Cap
•  Power Switch and Bay Eject Lever
•  LCD Unit
•  Standby Battery
•  Upper Shield
•  Video Card
•  DC/DC Card
•  Fan

•  Be careful not to damage it.
•  Make sure that it is connected firmly.

   A loose connection or damage to the card might cause serious problems  such as not being able to power on.

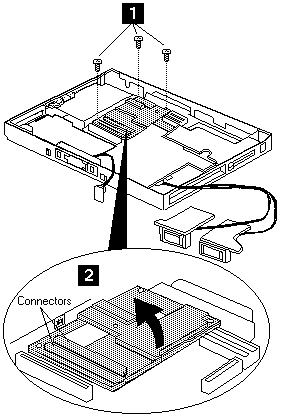

Step	Size (Quantity)	Color	Torque
1	M2 x 10 mm (3)	Yellow	2.5 kgcm
2	M2.5 x 4 mm, Nylon (1)	Yellow	4 kgcm
4	M2.5 x 3.5 mm, Nylon (2)	Black	4 kgcm

NOTE: Make sure you use the correct screw and tighten the screw to the torque specified. Do not use the screw that you have removed, use a new screw.

NOTES: When replacing:

1.  Make sure that each connector is facing correctly.
2.  Press the CPU card only at the indicated places in the figure.

   Press both sides at the same time. Do not press only one side or any other part of the card.
