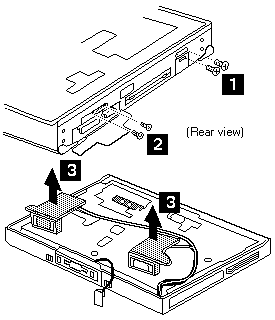

Step | Size (Quantity) | Color | Torque |
---|---|---|---|
1 | M2.5 x 6 mm , Nylon (2) | Black | 4 kgcm |
2 | M1.6 x 4 mm , flathead (2) | Black | 2 kgcm |
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you have removed, use
a new screw.

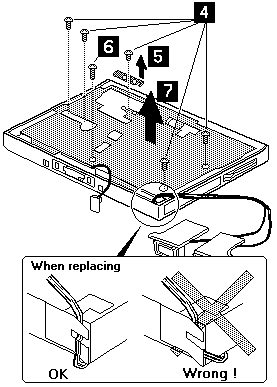

Step | Size (Quantity) | Color | Torque |
---|---|---|---|
4 | M2.5 x 4 mm , Nylon (5) | Yellow | 4 kgcm |
6 | M2.5 x 6 mm , Nylon (1) | Black | 4 kgcm |
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you have removed, use
a new screw.
When reassembling the upper shield, do as follows:
