| Step | Location (Quantity) | Length |
|---|---|---|
| 1 | LCD Hinge (3) | M2.5 x 6mm |
| 3 | LCD Hinge (2) | M2.5 x 6mm |
NOTE: When replacing, make sure you use the correct screw.
TFT LCD Do the same procedure for TFT type 1 and type 2 LCD.
1 2 3 4 Hinges
5 6 Latches
| Step | Location (Quantity) | Length |
|---|---|---|
| 1 | LCD Hinge (3) | M2.5 x 6mm |
| 3 | LCD Hinge (2) | M2.5 x 6mm |
NOTE: When replacing, make sure you use the correct screw.

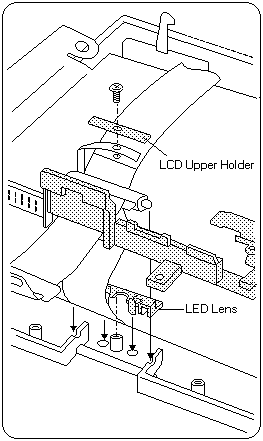

When replacing replace the LCD miscellaneous parts al follows:
LCD Cable

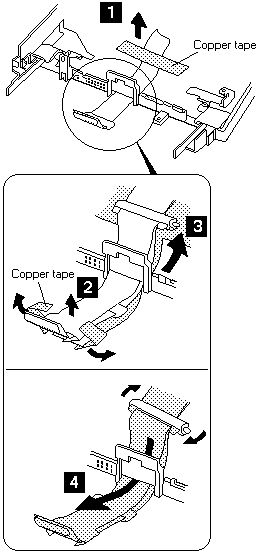

DSTN LCD

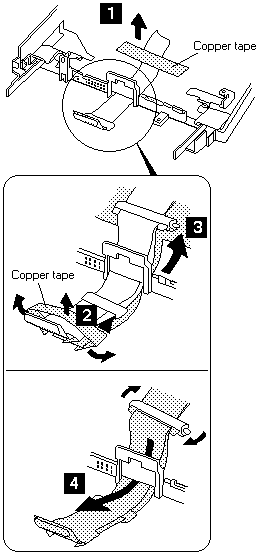

TFT LCD
