1120 LCD Front Cover (2635-380/385)



1120 LCD Front Cover




NOTE:

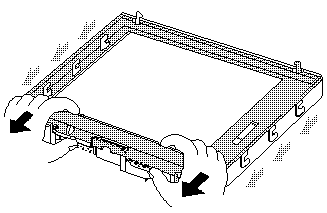

The LCD front cover has several latches. Release the latches as shown.

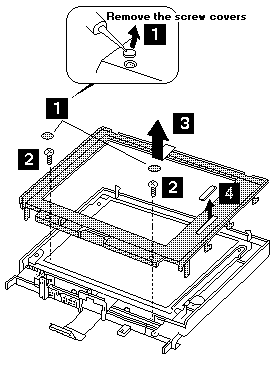

Step Location (Quantity) Length
1 LCD Front Cover (2) M2.5 x 6mm


NOTE: When replacing, make sure you use the correct screw.
