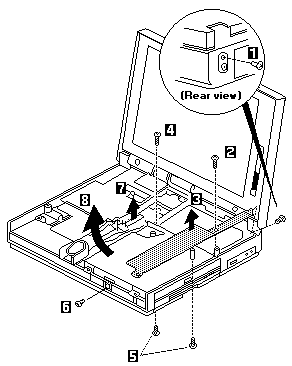

| Step | Location (Quantity) | Length |
|---|---|---|
| 1, 2 | Bracket (2) | M2.5 x 6mm |
| 4,5,6 | Base Cover (4) | M2.5 x 6mm |

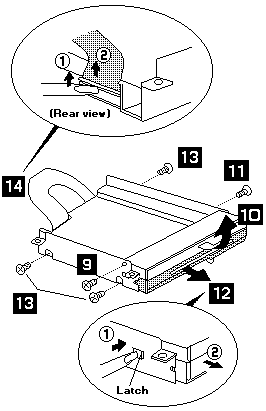

Models 380/385
9, 1 Blank Bezel
11, 12 FDD Bezel
11, 12, 13, 14 FDD
| Step | Location (Quantity) | Length |
|---|---|---|
| 9 | Bracket (1) | M2.6 x 4mm |
| 11 | Bracket (1) | M2.6 x 4mm |
| 13 | Bracket (3) | M2.6 x 2.8mm (red) |
NOTE: When replacing, make sure you use the correct screw.

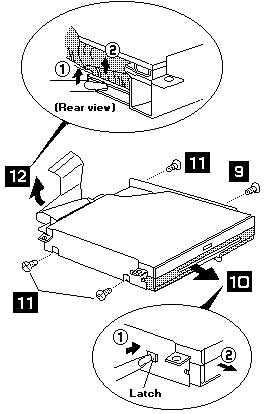

Models 380D/385D FDD
| Step | Location (Quantity) | Length |
|---|---|---|
| 9 | Bracket (1) | M2.6 x 4mm |
| 11 | Bracket (3) | M2.6 x 2.8mm (red) |
NOTE: When replacing, make sure you use the correct screw.

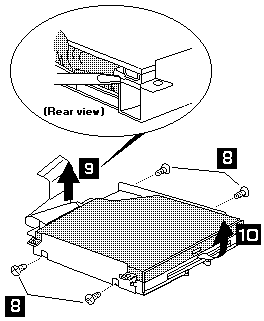

Models 380D/385D CD-ROM
| Step | Location (Quantity) | Length |
|---|---|---|
| 9 | Bracket (4) | M2 x 2.4mm w/washer |
NOTE: When replacing, make sure you use the correct screw.
