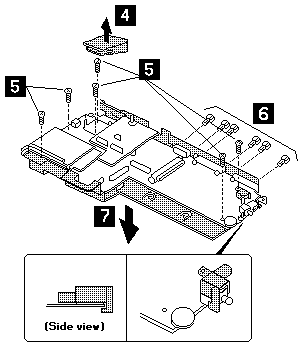

| Step | Location (Quantity) | Length |
|---|---|---|
| 1 | Upper Shield (3) | M2.5 x 6mm |
| 2 | Upper Shield (1) | M2.5 x 8mm |
| 5 | Lower Shield (6) | M2.5 x 6mm |
| 6 | Lower Shield (6) | Stud Screw |
| 8 | PCMCIA Assembly (2) | M2.5 x 16mm |
NOTE: When replacing, make sure you use the correct screw.
