Do not drop or apply any shock to the hard disk drive
The hard disk drive is sensitive to physical shock. Incorrect handling can cause damage and permanent loss of data
on the hard disk. Before removing the hard disk drive, have the user make a backup copy of all the information
on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend mode.

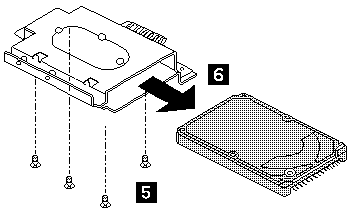

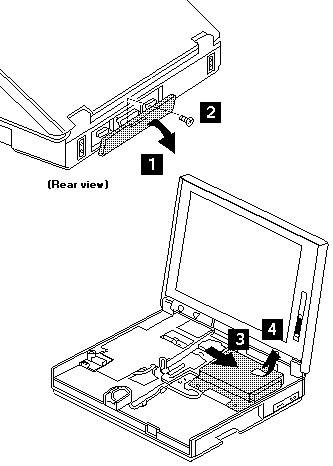

| Step | Location (Quantity) | Length |
|---|---|---|
| 2 | Base Cover (1) | M2.5 x 6mm |
| 5 | Base Cover (4) | M2.5 x 6mm |
NOTE: When replacing, make sure you use the correct screw.
