1130 Audio Card / Main Card / Riser Card (SelectaDock II - III)



Audio Card / Main Card / Riser Card

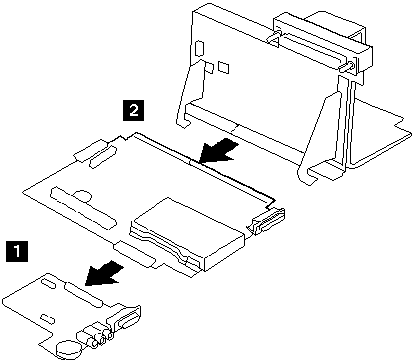

-1- For removing the Audio card
-2- For removing the Riser card
-1-, -2- For removing the Main Board

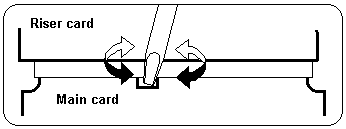

NOTE: In step -2-, use a tool such as a bladed screwdriver to easily disconnect the riser card and main card.
Be careful not to damage the connector.
