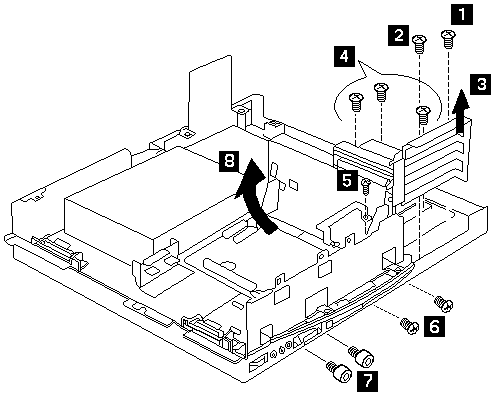

SelectaDock II | SelectaDock III | |||
---|---|---|---|---|
Step | Length (Quantity) | Memo | Length (Quantity) | Memo |
1 | M 2.6 x 5 mm (1) | - | M 3 x 6 mm (2) | - |
2 | M 2.6 x 3 mm (1) | - | M 3 x 6 mm (2) | - |
4 | M 2.6 x 5 mm (3) | Self-tapping screw | M 3 x 8 mm (3) | Self-tapping screw |
5 | M 1.5 x 6 mm (1) | - | M 2 x 6 mm (1) | - |
6 | M 2.6 x 5 mm (2) | - | M 2.6 x 8 mm (2) | - |
7 | M 2 x 7 mm (2) | Hex head (5 mm) | M 3 x 8 mm (2) | Hex Head (5 mm) |
