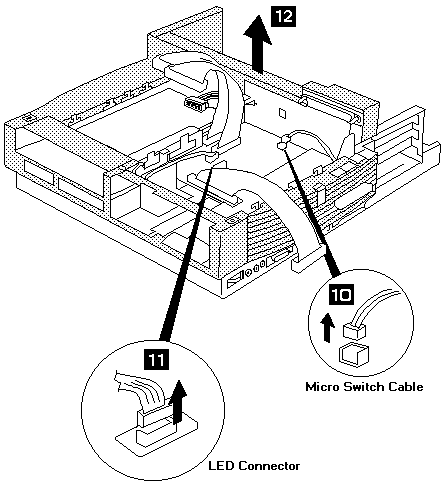

Make sure all power cords are unplugged
before you remove the upper cover.

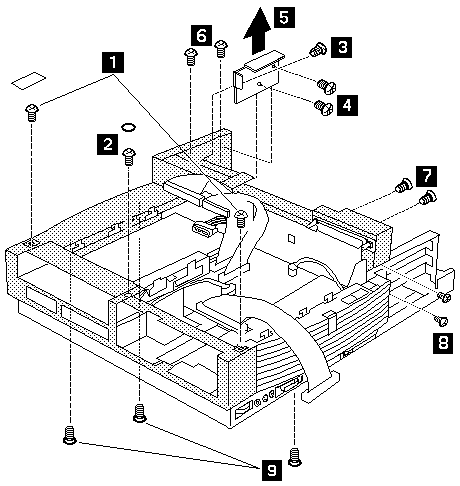

| SelectaDock II | SelectaDock III | |||
|---|---|---|---|---|
| Step | Length (Quantity) | Memo | Length (Quantity) | Memo |
| 1 | M 2.6 x 5 mm (2) | - | M 3 x 6 mm (2) | - |
| 2 | M 2.6 x 5 mm (1) | Flat head | M 3 x 8 mm (1) | Flat head |
| 3 | M 2.6 x 2.5 mm (1) | - | M 3 x 4 mm (1) | - |
| 4 | M 2.6 x 5 mm (2) | - | M 3 x 6 mm (2) | - |
| 6 | M 2.6 x 5 mm (2) | Self-tapping screw | M 3 x 8 mm (2) | Self-tapping screw |
| 7 | M 2.6 x 5 mm (2) | Black | M 3 x 8 mm (2) | Black |
| 8 | M 2.6 x 8 mm (2) | Black | M 3 x 8 mm (2) | Black |
| 9 | M 2.6 x 8 mm (3) | Self-tapping screw | M 3 x 8 mm (3) | Self-tapping screw |
