1100 System Board (2640)
System Board
NOTE:
- The system unit serial number must be restored when the system board is
replaced. To restorethe system unit serial number, select the option Set system identification on
the maintenance diskette. The flash ROM on the system board contains the vital product data (VPD),
that is, the system unit serial number, system board system number, and other computer-unique data.
- Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the
base cover.

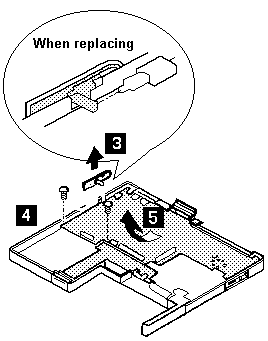

| Step |
Location (Quantity) |
Length |
| 1 |
Base Cover (6) |
4 mm (Hex) |
| 2 |
Base Cover (1) |
3 mm |
NOTE: Make sure you use the correct screw.
| Step |
Location (Quantity) |
Length |
| 1 |
System Board (2) |
4 mm |
NOTE: Make sure you use the correct screw.
