1080 Hard Disk Drive (2640)



Hard Disk Drive

  Do not drop or apply any shock to the hard disk drive
The hard disk drive is sensitive to physical shock. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, have the user make a backup copy of all information on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend mode.

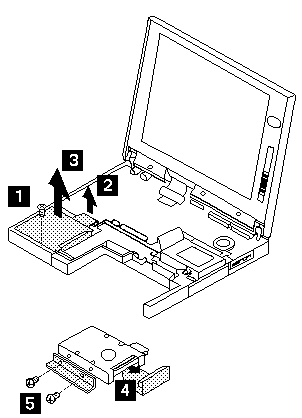

NOTE: Remove the hard disk drive exactly as shown in the figure. Do not apply any extra force to the hard disk drive when removing it.


Step Location (Quantity) Length
1 HDD Bracket (1) 6 mm
5 Hard Disk Drive (2) 3 mm


NOTE: Make sure you use the correct screw.
