2140 DSP Card
2140 DSP Card
Remove the following:
- Mini-Jack Holder
- Modem Guide
- Modem Lever
- Microphone Cable

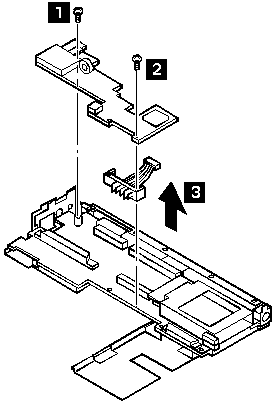

Use the following table for reference when replacing parts.
| Step |
Location (Quantity) |
Length |
| 1 |
DSP card (1) |
8 mm |
| 2 |
DSP card (1) |
14 mm |
NOTE: Make sure you use the correct screw. Screw Size Chart
