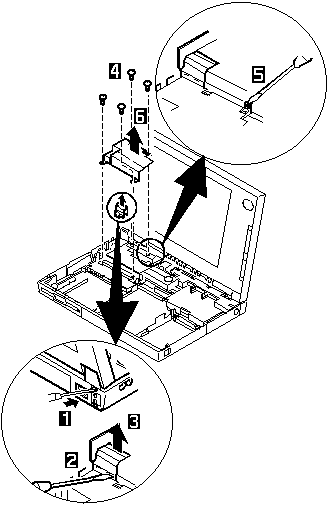

1080 Modem Card (355x)
1080 Modem Card (355x)

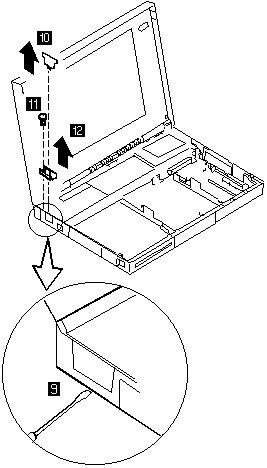

1085 Bezel (360x)
NOTE:
For Model 360x,
use steps 9 through 12
to remove the bezel.
When the audio card is installed in Model 360x,
modem card means audio card in the following step.
For the modem card:
- or -
For the audio card:
NOTE:

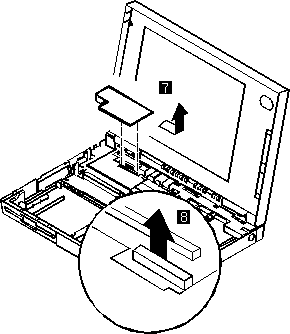

- Gently lift the audio card in step 7
to avoid damaging the speaker cable.
- Do not pull the speaker cable8 before
the audio card is removed7.
Use the following table for reference when replacing parts.
| Step |
Location (Quantity) |
Length |
| 1a |
Speaker shield (2) |
4 mm |
| 1b |
Diskette drive connector (2) |
6 mm |
| 5 |
Lower Shield (2) |
4 mm |
NOTE: Make sure you use the correct screw. Screw Size Chart
When you reinstall the upper shield,
make sure the LCD ground-terminal is located correctly as shown
in the circle.
