Controls and Indicators



Controls and Indicators

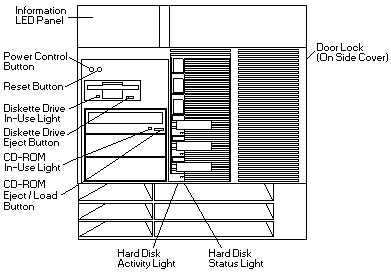

The most commonly used controls and indicators on the front of the server appear in the following illustration.


Door Lock (Tower Model Only): You can lock the door on the server to deter tampering with the internal components. This same lock also locks the top cover in place.

Power Control Button: Press this button to manually turn the server on or off.


The Power Control button on the front of the server does not turn off the electrical current supplied to the server. The server also might have more than one power cord. To remove all electrical current from the server, ensure that all power cords are disconnected from the power source.


The server can be activated in several ways:


The server can be deactivated as follows:


Note: Wait about 15 seconds after disconnecting the power cord for the system to stop running. Watch for the System Power light on the information LED panel to stop blinking.


Reset Button: Press this button to reset the system and run the power-on self-test (POST).
Information LED Panel: The lights on this panel give status information for the server. See 'Information LED Panel' for more information.
Diskette-Eject Button: Press this button to eject a diskette from the drive.
CD-ROM Eject/Load Button: Press this button to eject or retract the CD-ROM tray so that you can insert or remove a CD.
CD-ROM Drive In-Use Light: When this light is lit, the CD-ROM drive is being accessed.
Diskette Drive In-Use Light: When this light is lit, the diskette drive is being accessed.
Hard Disk Lights: Each of the six hot-swap drive bays has a set of two lights, which indicate the following:
