Using the ServeRAID Configuration Program
Using the ServeRAID Configuration Program
After the ServeRAID Configuration program starts, one of the following screens will appear:

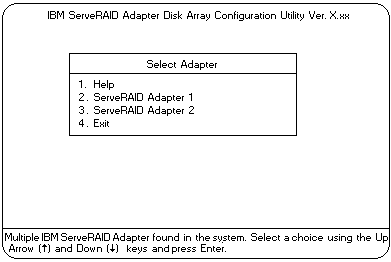

- If you have more than one ServeRAID controller in the system, a screen similar to the following appears.
Note:
You can install multiple ServeRAID adapters in the server,
but you must configure each adapter separately.
In the upper-right corner of the screen, you will see Ver. x.xx.
On the screen, the x.xx is replaced by the version number of the configuration program.
Use the Up Arrow (
) or Down Arrow (
) key to highlight the choice, then,
press Enter The Main Menu appears.
If you have only one ServeRAID controller installed in the server, the Main Menu appears.
Type the highlighted number of the menu item, or use the Up Arrow ( )
or Down Arrow (
) key to highlight the choice, then, press Enter.
You can also press Esc to return to the previous menu, the previous work area
of a screen, or to the beginning of the Main Menu.
If you are not familiar with the ServeRAID Configuration
program, review the information in
'ServeRAID Menus, Screens, and Drive States'.
