Planar Board
Planar Board
| Step |
Size (Quantity) |
Head & Color |
Torque |
Memo |
| 1 |
M2.5x6L (2) |
Bind head, black |
3.2 kgf-cm |
w/ nylok paste |
NOTE: Make sure you use the correct screw for replacement.
Notes:

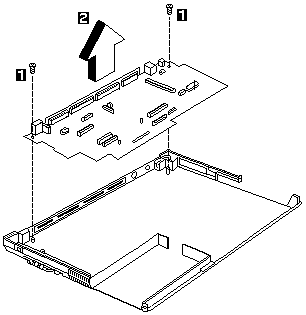

- When removing the planar board from the base
cover, gently raise the side of the planar board facing
the rear I/O ports, then pull out the planar board.
- When replacing the planar board, align the power
switch and power actuator. Make sure that the power
switch operates correctly before securing the screws.
