Upper Cover (Keyboard Bezel)
Upper Cover (Keyboard Bezel)
| Step |
Size (Quantity) |
Head & Color |
Torque |
Memo |
| 1 |
M2.5x13.5L (5) |
Pan head, black |
2.5 kgf-cm |
w/ nylok paste |

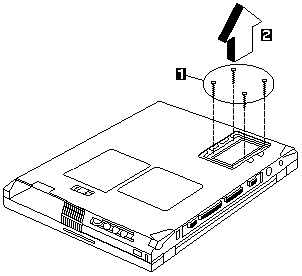

NOTE: Make sure you use the correct screw for replacement.

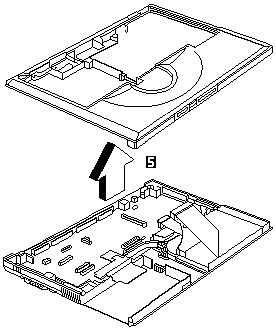

Note: The upper cover has several latches. When
removing the upper cover from the base cover,
gently release these latches, then raise the side of
the upper cover facing the palm rest to remove it.
Be careful not to break the latches.
