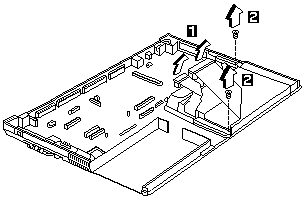

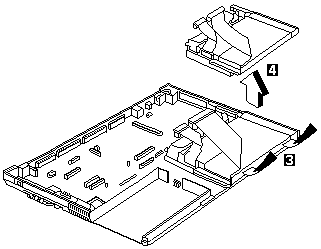

Diskette and CD-ROM Drives Assembly



Diskette and CD-ROM Drives Assembly



Step Size (Quantity) Head & Color Torque Memo
2 M2.5x6L (2) Bind head, black 3.2 kgf-cm w/ nylok paste

NOTE: Make sure you use the correct screw for replacement.




  - Attention - You must pull out the CD tray before removing the Diskette and CD-ROM Drives Assembly. Use a small stick to press the CD-ROM-drive-emergency-eject hole to open the CD-tray.


CD-ROM Module



Step Size (Quantity) Head & Color Torque Memo
5 M2x4L (3) Pan head, silver 1.2 kgf-cm

NOTE: Make sure you use the correct screw for replacement.

  - CAUTION - Do not disassemble the CD-ROM, there are no user adjustments or serviceable parts inside. The use of controls, adjustments or performing procedures other than those specified may result in hazardous radiation exposure.

Do not apply any extra force to the CD-ROM drive when removing it.

Diskette Drive (FDD with Bezel)



Step Size (Quantity) Head & Color Torque Memo
9 M2.5x3.5L (4) Bind head, black 1.6 kgf-cm /w nylok paste

NOTE: Make sure you use the correct screw for replacement.
