Step | Size (Quantity) | Torque |
---|---|---|
2 | M2.6 x 4mm, Yellow (1) | 4 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.
Step | Size (Quantity) | Torque |
---|---|---|
4 | M2x1.7mm, special-head Blue (2) | 1.5-1.8 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.
Step | Size (Quantity) | Torque |
---|---|---|
6 | M2.6 x 2.8mm, pink (3) | 4 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.

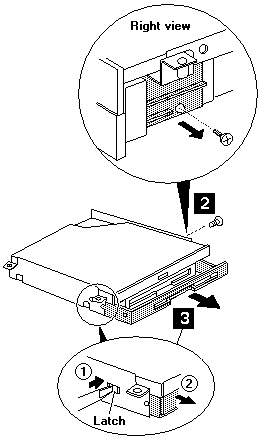

CD-ROM Drive
Step | Size (Quantity) | Torque |
---|---|---|
1 | M2.6 x 1.7mm, special-head Blue (2) |
1.5-1.8 kgcm |
4 | (a) M2 x 1.7mm, special-head Blue (2) (b) M2 x 2.4mm, special-head Yellow (2) |
1.5-1.8 kgcm |
NOTE: Make sure you use the correct screw, and tighten all
screws firmly to the torque shown in the table, if you have a torque screwdriver.
Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.
