Keyboard Unit (TP 380XD, 385XD, 380Z

^{IBM-AUSTRIA - PC-HW-Support 30 Aug 1999}

Keyboard Unit (TP 380XD, 385XD, 380Z - 2635)

Keyboard Unit

Battery Pack

Step Size (Quantity) Torque 1 M2.5 x 25mm, nylon-coated (1) 3-4 kgcm 2 (a) M2.5 x 8mm, nylon-coated (3) (b) M2.5 x 6mm, nylon-coated (1) 3-4 kgcm

Step	Size (Quantity)	Torque
1	M2.5 x 25mm, nylon-coated (1)	3-4 kgcm
2	(a) M2.5 x 8mm, nylon-coated (3) (b) M2.5 x 6mm, nylon-coated (1)	3-4 kgcm

NOTE: Make sure you use the correct screw, and tighten all screws firmly to the torque shown in the table, if you have a torque screwdriver. Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly.

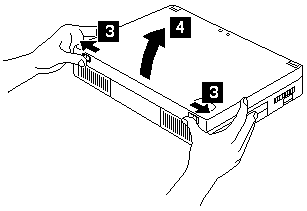

-3- Make sure that the battery pack lock is not sticking out, and turn the computer right side up.

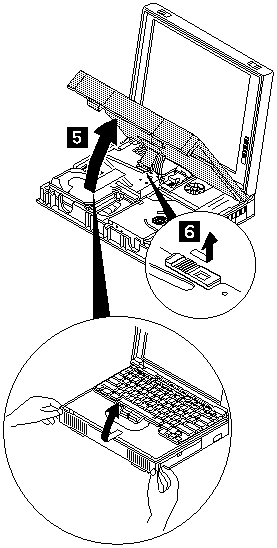

NOTE: In order not to damage the connectors, pull the keyboard assembly toward you a little in step -5- and then go to -6-.

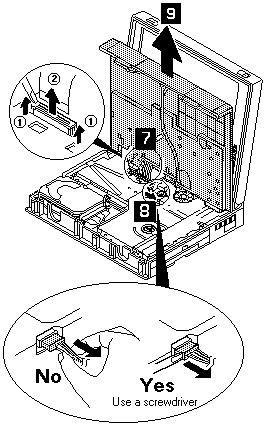

When installing - See the following figure for the direction of the speaker connector.

When replacing - Stick a model name label on the keyboard.
