Keyboard and Speaker (TP 380Z - 2635)
Keyboard and Speaker

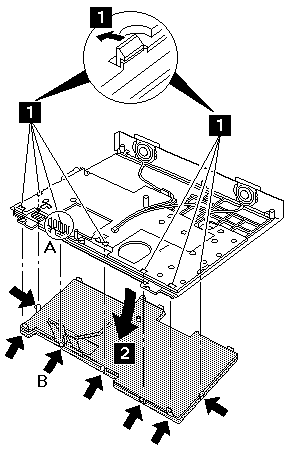

When you release latch B, be careful not to
apply any force to area A (lenses for status indicators).

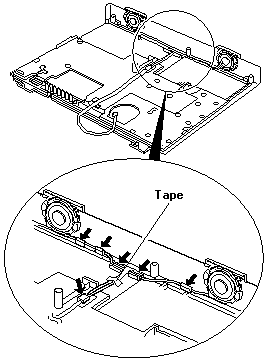

When installing - Attach the speakers to their correct side and route the
speaker cables as shown.
The right speaker has a red wire.
The left speaker has a blue wire.
