2010 LCD Front Cover (TP 560Z - 2640)
2010 LCD Front Cover
Important The LCD for the notebook computer contains over
2,359,296 thin-film transistors (TFTs).
A small number of missing, discolored, or constantly lighted dots is characteristic of TFT LCD technology, but excessive
pixel problems can cause viewing concerns.
The LCD should be replaced if the number of missing, discolored, or lighted dots in any background is 21 or more.
Step |
Size (Quantity) |
Torque |
2 |
M2.5 x 5.5mm, brass flat-head (3) |
3kgcm |
When re-installing: Make sure you use the correct screw,
and tighten it firmly to the torque shown in the table if you
have a torque screwdriver. Never use a screw that you removed. Use a new one. Make sure the screw is
tightened firmly (see 'Screw Tightening Information' if you do not have a torque screwdriver).

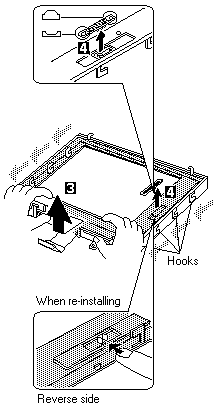

The LCD frontcover has several latches. Release the latches as shown in step -3-.
When re-installing:
Make sure that all eight hooks are engaged properly.
Make sure that the slide knobs work correctly.
