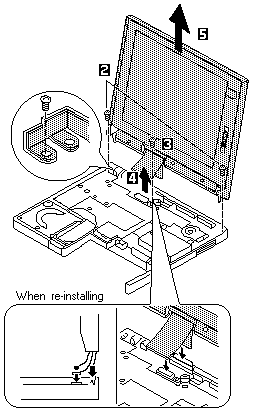

| Step | Size (Quantity) | Torque |
|---|---|---|
| 1 | M2.5 x 7mm, black plain-head (2) | 4kgcm |
| 2 | M2.5 x 5mm, yellow bind (2) | 4kgcm |
| 3 | M2.5 x 2mm, yellow bind (1) | 2kgcm |
When re-installing: Make sure you use the correct screw,
and tighten it firmly to the torque shown in the table if you
have a torque screwdriver. Never use a screw that you removed. Use a new one. Make sure the screw is
tightened firmly (see 'Screw Tightening Information' if you do not have a torque screwdriver).
