Keyboard and Speaker (TP 380XD, 385XD - 2635)
Keyboard and Speaker
When you release latch B, be careful not to
apply any force to area A (lenses for status indicators).

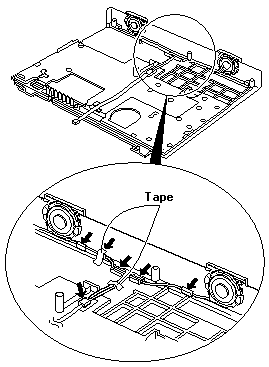

When installing - The following figure shows the route for the speaker cables.
