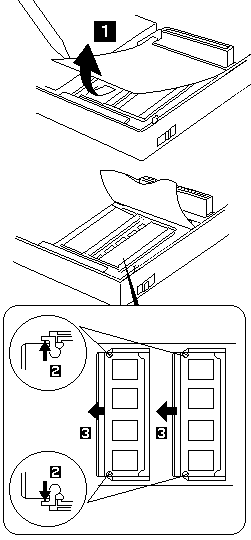

1050 DIMM (If installed) (765D-9546 765L-9547)



1050 DIMM (If installed)

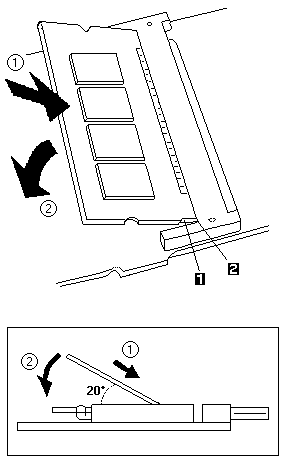

NOTE: When installing the DIMM, do the following:
  1.  Insert the DIMM, at an angle of approximately 20°, into the socket, then press it firmly.
  2.  Pivot the DIMM until it snaps into place.
