1190 LCD Assembly
1190 LCD Assembly
NOTE:

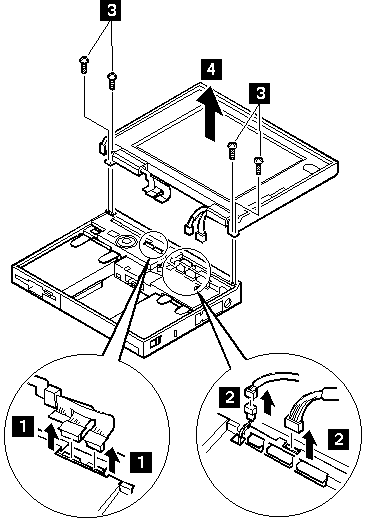

When removing the LCD cables 1, pull the connector
straight up.
Incorrect handling can damage the connector.
Use the following table for reference when replacing parts.
| Step |
Location (Quantity) |
Length |
| 3 |
LCD hinge (4) |
4 mm |
please READ - see
NOTE: Make sure you use the correct screw. Screw Size Chart
To Clean the LCD
Gently wipe the LCD with a dry, soft cloth.
Do not use alcohol or detergent to clean the LCD.
To avoid damaging the LCD,
do not scratch or apply any force to its surface.
