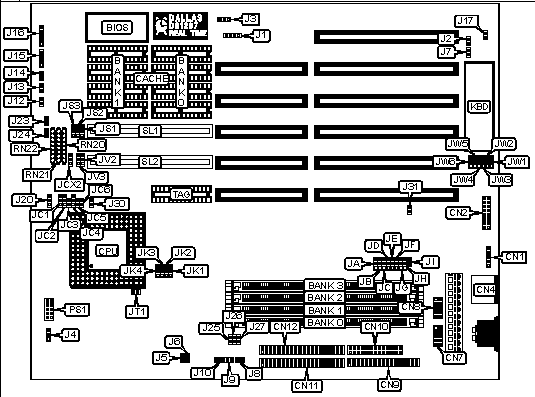

(click layout/photo to enlarge)(click JUMPER MANUAL to download)

486-GIO-VT2 VESA Motherboard

        - 4-72 pin SIMM slots  (1-64meg FPM DRAM)
        - 2-32bit VESA Local Bus slots
        - 5-16bit ISA slots
        - 1-8bit XT slot
        - 64k-256k CACHE support in 8-28pin sockets + 1 TAG RAM socket
        - AWARD Auto-Detect Bios with Energy Mgmt.
        - Supports LBA Mode Control & Large Disk DOS Compatibility.
        - Green PC Connector
        - VIA  chipset  (version # needed)
        - Supports 3.3v/5volt CPU's and clock speeds 2x/2.5x/3x
        - 237pin ZIF CPU socket which supports these processors:
          INTEL 80486SX,80486DX/DX2/DX4,P4S,P23S,P24C,P24CT,P24D,P24S
          Pentium Overdrive
          CYRIX CX486S(M6),CX486DX(M7)
          AMD AM486DX,AM486DXL
        - Supports speeds of 25/33/40/50/66/75/100(internal)MHz.
        - Multi-I/O chip supports 2 - serial ports, 1 - game port
          2 - IDE interfaces supporting 4 devices, PS/2 mouse support
          1 - parallel port with EPP & ECP, 1 - floppy disk interface.
        - Manufactured by: FIRST INTERNATIONAL COMPUTER, INC.
